在ESXI6.7上部署服务

也别在windows server上部署了，直接上虚拟机吧。

创建rocky8虚拟机

在EXSI6.7上创建虚拟机

在左侧“虚拟机”上右键选择“创建/注册虚拟机”

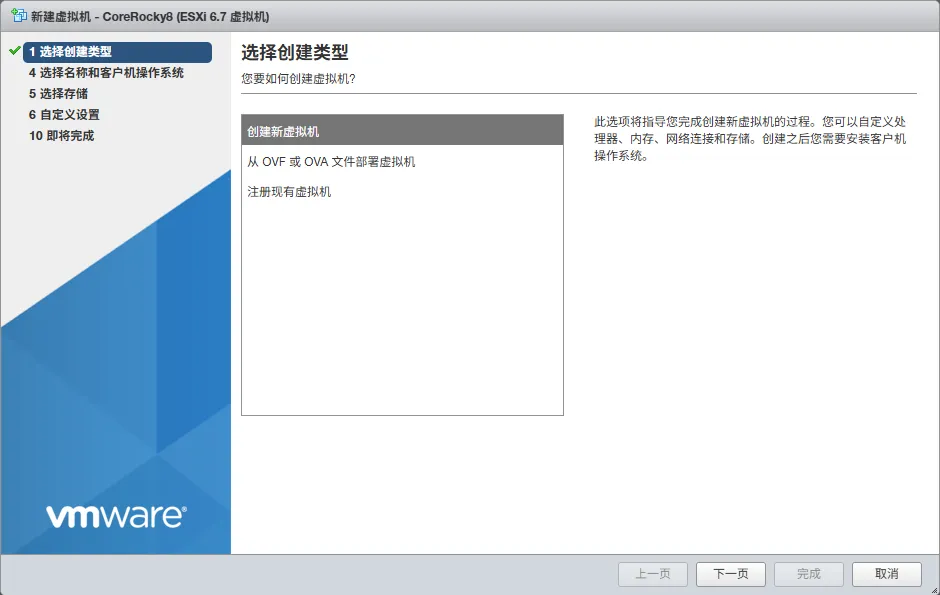

选择“创建新虚拟机”

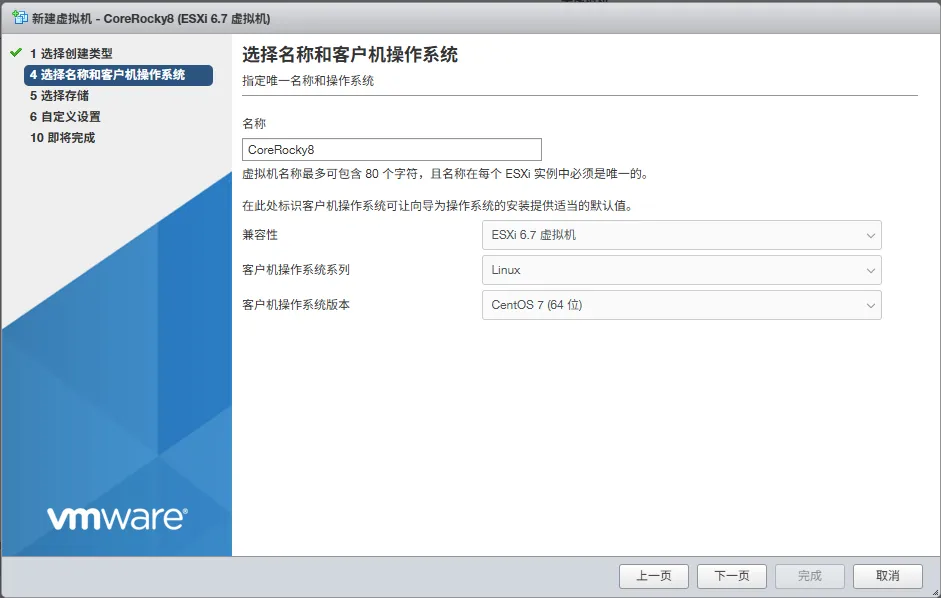

设置名称和操作系统

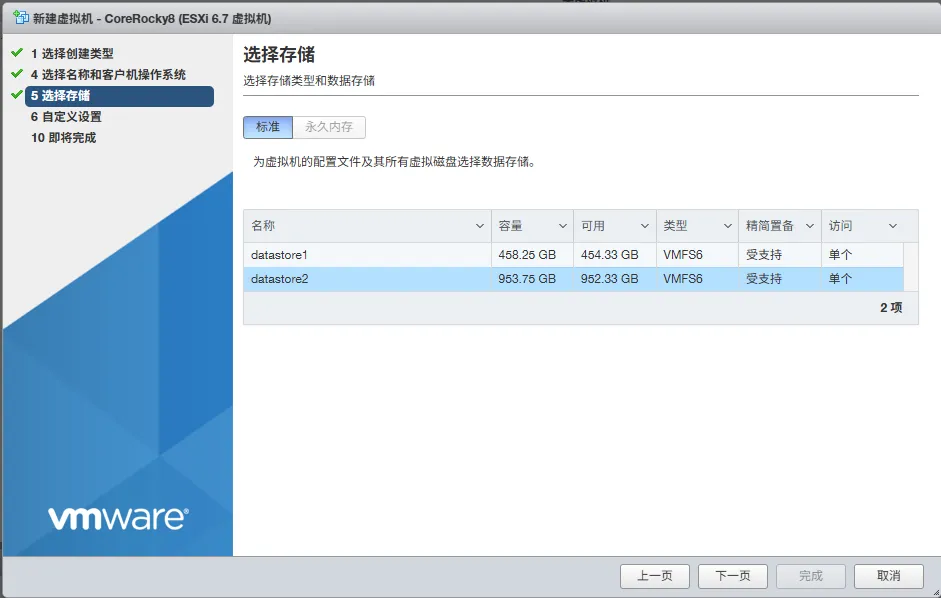

选择储存

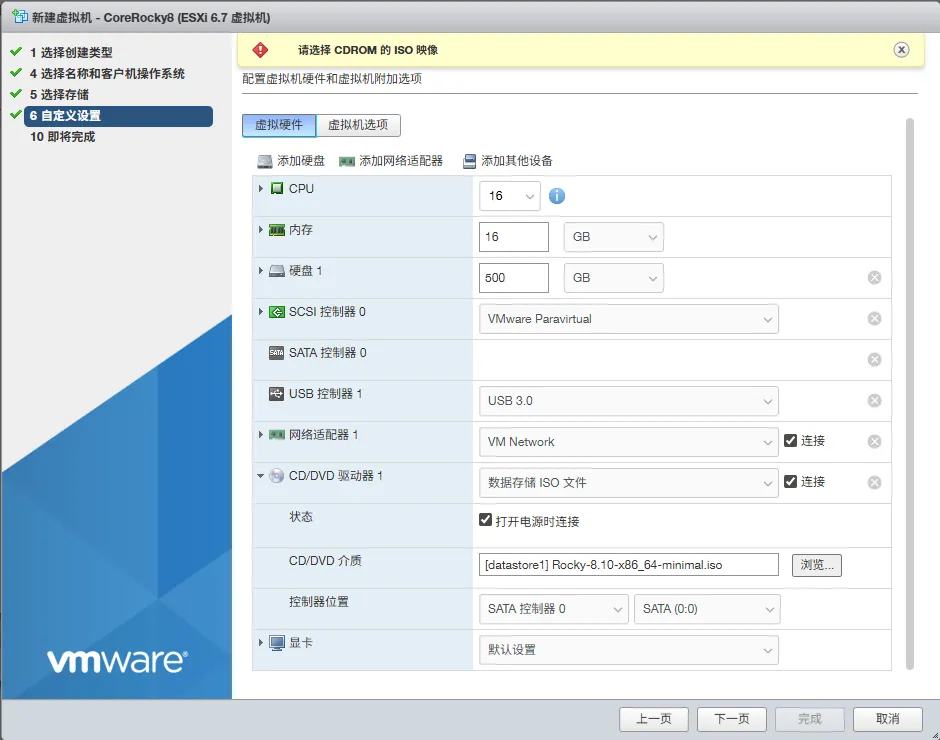

分配8核心16线程16G内存500G硬盘选择ISO镜像使用Rocky8的系统镜像

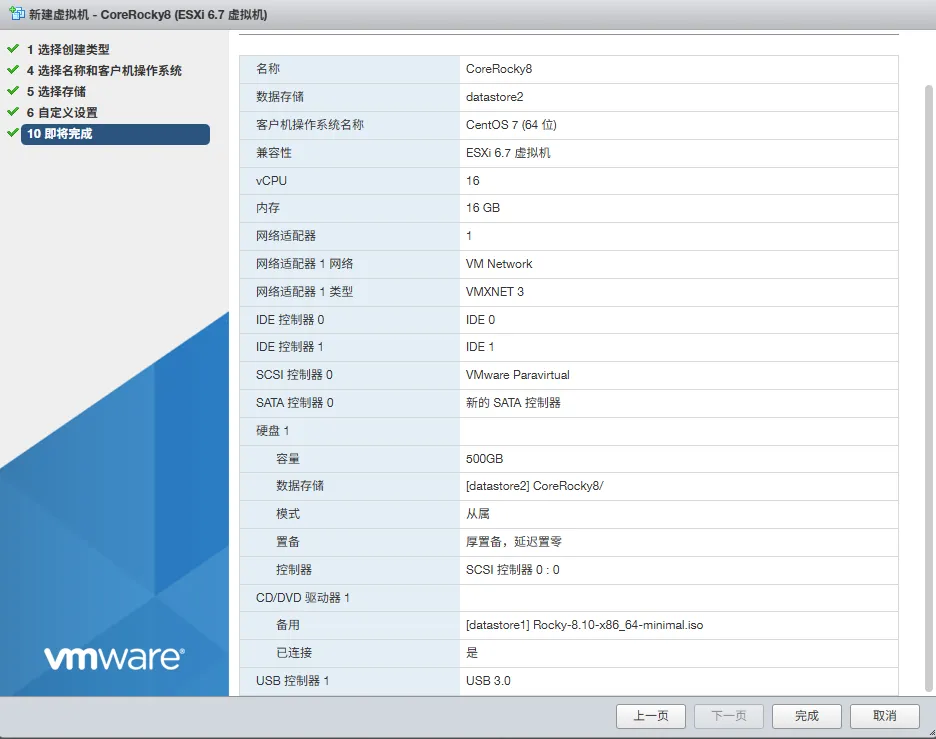

确认配置点击“完成”

安装系统机配置

进入虚拟机选择“install rocky Linux 8”

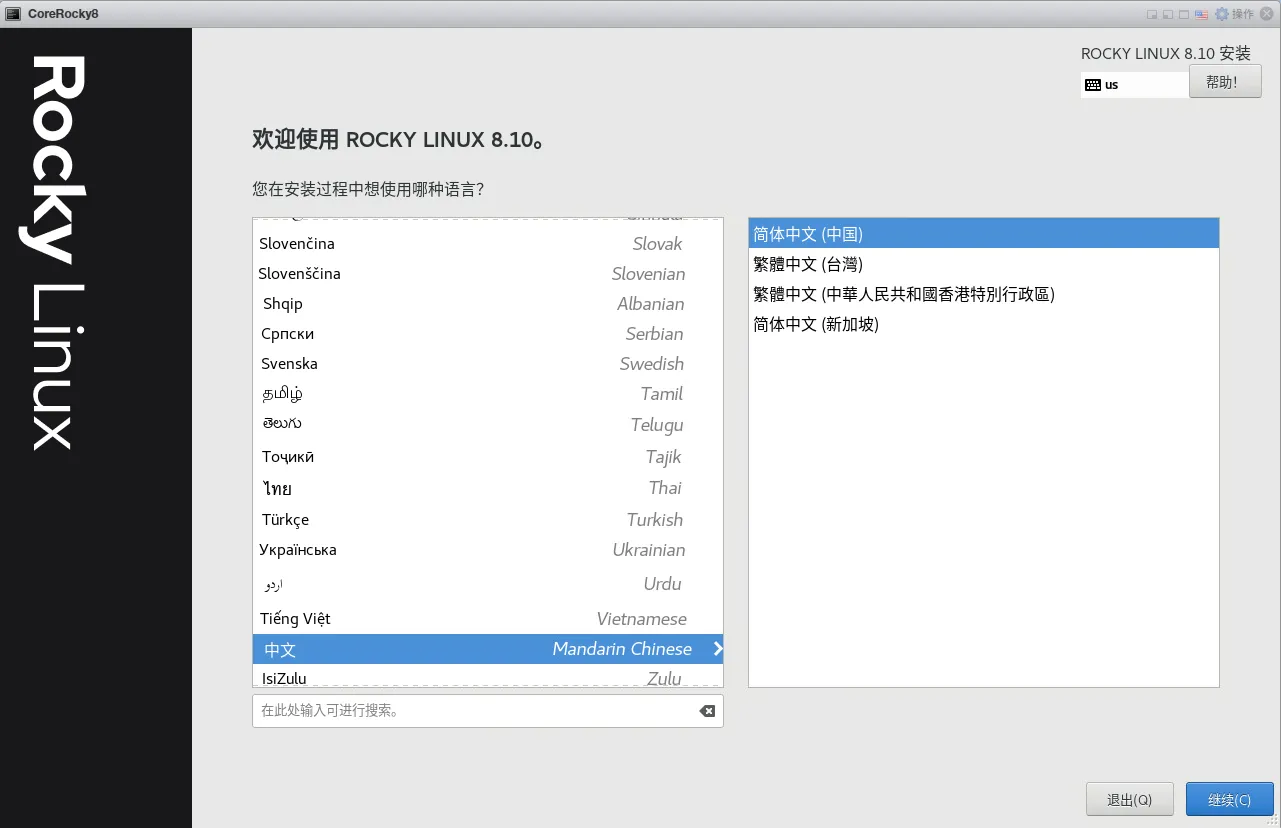

语言选择“中文”-“简体中文（中国）”，点击“继续”

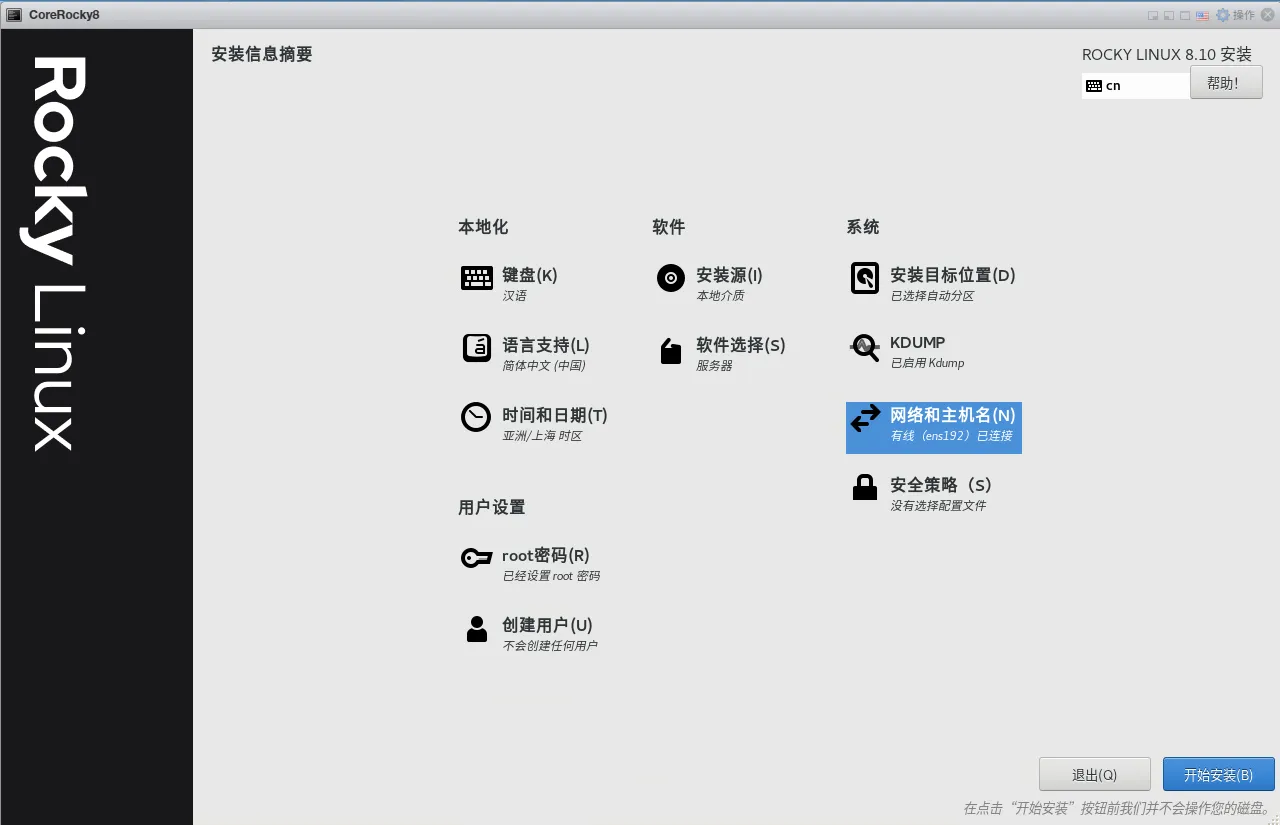

正确设置“安装目标位置”“日期和时间”“网络和主机名”“root密码”点击“开始安装”

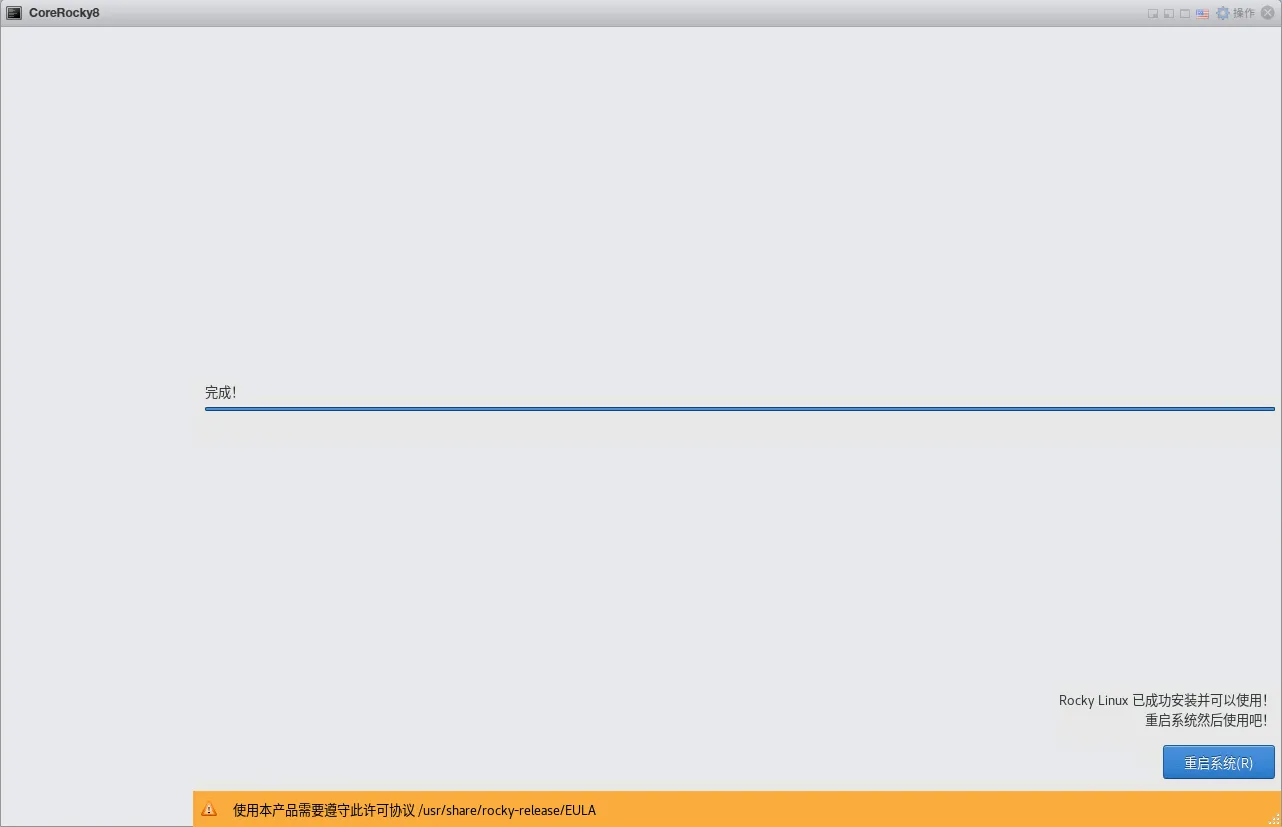

等待安装完成后点击“重启系统”

安装环境

安装基础环境

bash
# 更新系统
sudo dnf update -y

# 安装常用工具
sudo dnf install -y vim wget net-tools epel-release

# 开启 SSH 服务（通常默认开着）
sudo systemctl enable sshd --now

# 安装虚拟机管理工具并打开服务
sudo dnf install -y open-vm-tools
sudo systemctl enable vmtoolsd --now

安装docker

bash
# 卸载旧版本
sudo dnf remove docker \
                docker-client \
                docker-client-latest \
                docker-common \
                docker-latest \
                docker-latest-logrotate \
                docker-logrotate \
                docker-engine

# 安装必要工具
sudo dnf install -y yum-utils device-mapper-persistent-data lvm2

# 添加官方仓库
sudo dnf config-manager --add-repo https://download.docker.com/linux/centos/docker-ce.repo

# 安装docker ce
sudo dnf install -y docker-ce docker-ce-cli containerd.io

# 启动并设置开机自启动
sudo systemctl start docker
sudo systemctl enable docker

# 验证安装
docker --version

# 手动创建一个网络
docker network create auth-network

安装docker-compose

bash
# 在https://github.com/docker/compose/releases下载docker-compose-Linux-x86_64

# 推到服务器上/usr/local/bin目录，重命名为docker-compose

# 给权限
sudo chmod +x /usr/local/bin/docker-compose

# 验证安装
docker-compose --version

配置国内镜像源

json
{
  "registry-mirrors": [
    "https://registry.docker-cn.com",
    "https://mirror.ccs.tencentyun.com",
    "https://hub-mirror.c.163.com",
    "https://docker.m.daocloud.io"
  ]
}

bash
vim /etc/docker/daemon.json
# 将上面的内容复制进去
# 使用:wq保存退出

# 重启docker服务
systemctl daemon-reload
systemctl restart docker

构建jira

编写Dockerfile

Dockerfile
FROM atlassian/jira-software:8.16.1

USER root

# 将代理破解包加入容器
COPY "atlassian-agent.jar" /opt/atlassian/jira/
COPY "mysql-connector-java-5.1.49-bin.jar" /opt/atlassian/jira/lib/

# 设置启动加载代理包
RUN echo 'export CATALINA_OPTS="-javaagent:/opt/atlassian/jira/atlassian-agent.jar ${CATALINA_OPTS}"' >> /opt/atlassian/jira/bin/setenv.sh

构建jira镜像

bash
# 创建进入jira目录
mkdir /usr/local/bin/jira
cd /usr/local/bin/jira

# 新建Dockerfile
vim ./Dockerfile

# 将上面的Dockerfile粘贴进去
# 使用 :wq 保存并退出

# 下载atlassian-agent.jar也放到/usr/local/bin/jira目录下
# 下载mysql-connector-java-5.1.49-bin.jar也放到/usr/local/bin/jira目录下

# 构建镜像
docker build -t jira/jira:8.16.1 .

构建confluence

编写Dockerfile

Dockerfile
FROM atlassian/confluence:8.8.0

USER root

# 将代理破解包加入容器
COPY "atlassian-agent.jar" /opt/atlassian/confluence/
COPY "mysql-connector-java-5.1.49-bin.jar" /opt/atlassian/confluence/confluence/WEB-INF/lib/

# 设置启动加载代理包
RUN echo 'export CATALINA_OPTS="-javaagent:/opt/atlassian/confluence/atlassian-agent.jar ${CATALINA_OPTS}"' >> /opt/atlassian/confluence/bin/setenv.sh

构建confluence镜像

bash
# 创建进入confluence目录
mkdir /usr/local/bin/confluence
cd /usr/local/bin/confluence

# 新建Dockerfile
vim ./Dockerfile

# 将上面的Dockerfile粘贴进去
# 使用 :wq 保存并退出

# 下载atlassian-agent.jar也放到/usr/local/bin/confluence目录下
# 下载mysql-connector-java-5.1.49-bin.jar也放到/usr/local/bin/confluence目录下

# 构建镜像
docker build -f Dockerfile -t confluence/confluence:8.8.0 .

配置mysql

编写配置文件

jira.cnf
[mysqld]
default-storage-engine=INNODB
character-set-server=utf8mb4
collation-server=utf8mb4_bin
max_allowed_packet=256M
innodb_log_file_size=2G
transaction-isolation=READ-COMMITTED

编写自动化脚本init-databases.sql

sql
CREATE DATABASE IF NOT EXISTS jiradb CHARACTER SET utf8mb4 COLLATE utf8mb4_bin;
CREATE DATABASE IF NOT EXISTS confluencedb CHARACTER SET utf8mb4 COLLATE utf8mb4_bin;

CREATE USER IF NOT EXISTS 'jirauser'@'%' IDENTIFIED BY 'password';
CREATE USER IF NOT EXISTS 'confluenceuser'@'%' IDENTIFIED BY 'password';

GRANT ALL PRIVILEGES ON jiradb.* TO 'jirauser'@'%';
GRANT ALL PRIVILEGES ON confluencedb.* TO 'confluenceuser'@'%';

FLUSH PRIVILEGES;

创建环境

bash
# 创建进入mysql目录
mkdir /usr/local/bin/mysql
cd /usr/local/bin/mysql

# 创建数据持久化目录
mkdir data
mkdir ../jira_data
mkdir ../confluence_data

# 创建自动化脚本
mkdir initdb
vim ./initdb/init-databases.sql
# 将上面的自动化脚本内容复制进去
# 使用:wq保存退出

# 创建配置文件目录
mkdir conf.d
vim ./conf.d/jira.cnf
# 将上面的配置文件内容复制进去
# 使用:wq保存退出

编写docker-compose.yml

计划通过一个docker-compose.yml同时拉起三个服务，mysql5.7、jira、confluence，后期再添加openldap

yml
version: '3.8'

services:
  mysql:
    image: mysql:5.7
    container_name: mysql
    restart: always
    environment:
      MYSQL_ROOT_PASSWORD: rootpassword
      MYSQL_DATABASE: jiradb
      MYSQL_USER: jirauser
      MYSQL_PASSWORD: jirapassword
    ports:
      - "3306:3306"
    volumes:
      - ./mysql/data:/var/lib/mysql
      - ./mysql/conf.d:/etc/mysql/conf.d
      - ./mysql/initdb:/docker-entrypoint-initdb.d
    networks:
      - auth-network

  jira:
    image: atlassian/jira-software:8.16.1
    container_name: jira
    restart: always
    environment:
      - JVM_MINIMUM_MEMORY=2g
      - JVM_MAXIMUM_MEMORY=4g
    ports:
      - "8080:8080"
    volumes:
      - ./jira_data:/var/atlassian/application-data/jira
    depends_on:
      - mysql
    networks:
      - auth-network

  confluence:
    image: atlassian/confluence-server:8.8.0
    container_name: confluence
    restart: always
    environment:
      - JVM_MINIMUM_MEMORY=2g
      - JVM_MAXIMUM_MEMORY=4g
    ports:
      - "8090:8090"
    volumes:
      - ./confluence_data:/var/atlassian/application-data/confluence
    depends_on:
      - mysql
    networks:
      - auth-network

networks:
  auth-network:
    external: true

启动容器

bash
# 创建docker-compose.yml文件
cd /usr/local/bin
vim docker-compose.yml
# 将上面的配置文件复制进去
# 使用：wq保存退出

docker-compose up -d
